WNiCu WNiFe Heavy Metal Tungsten Alloy Plates 150mm AMST 21014

  • 1
  • 2
  • 3

Brand Name : FOTMA

Model Number : WNiCu WNiFe

Certification : ISO9001:2008

Place of Origin : P.R. China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, PayPal

Supply Ability : 10000pcs/month

Delivery Time : 20-25 days after deposit

Packaging Details : Paper cartons or plywood boxes

W Content : 88% to 98%

Others : Ni Cu, Ni Fe

Thickness : 1.0 - 150mm

Surface : Machined, Ground

Density : 17 - 18.5 g/cc

Tolerance : +/-0.05 - 0.1mm

Contact Now

Heavy Metal Tungsten Alloy Plates / Bars Thickness 1.0mm to 150mm WNiCu WNiFe

Tungsten alloy plates have density ranges from 17.0g/cm3 to 18.8g/cm3. It has low thermal expansion coefficient, high strength and high modulus of elasticity.

Tungsten alloy has low thermal coefficient but high absorption ability and high-energy rays. Tungsten alloys are produced according to AMS-T-21014 standard.

Tungsten alloy plates are widely used as balancing molds and high temperature molds. Also it can be made into protective shields and high energy rays. Tungsten alloy plates play an important role in aircraft controlling surfaces, helicopter rotor systems, parts of engine and shipping ballast.

Description of Tungsten Alloy Plates:

Density: (16.8 - 18.8) g/cm3
Surface Condition: Machined, Ground

Standard: AMS-T-21014
Dimension: Thickness 1.0mm - 150mm, Width max 300mm, Length max 600mm
Composition: W content: 88-98%, W-Ni-Fe, W-Ni-Cu
Surface: Sinter state, finish state
Application: balance weight, Military industry


Tungsten Alloy Plates Applications:

Tungsten Alloy products are offered as machinable blanks or as precision machined parts to customer specification and used in many different applications as listed below.

Tungsten Alloy
Counterbalance for Vibration Dampening
Aircraft control surfaces
Helicopter rotor Systems
Engine components
Auto racing industry
Ship ballasts
Golf club weights
Down hole logging-Sinker bars
Boring bars
Ordnance application
Bucking Bars

Properties of Tungsten Alloys:

Alloy Type
(%)

HD17
90 W
6 Ni
4 Cu

HD17D
90 W
7 Ni
3 Fe

HD17.5
92.5 W
5.25 Ni
2.25 Fe

HD18
95 W
3.5 Ni
1.5 Cu

HD18D
95 W
3.5 Ni
1.5 Fe

HD18.5
97 W
2.1 Ni
.9 Fe

MIL-T-21014

Class 1

Class 1

Class 1

Class 3

Class 3

Class 4

SAE-AMS-T-21014

Class 1

Class 1

Class 2

Class 3

Class 3

Class 4

AMS 7725 C

7725 C

7725 C

--

--

--

--

ASTM B777-87

Class 1

Class 1

Class 2

Class 3

Class 3

Class 4

Typical Density
(g/cc)

17.1

17.1

17.5

18

18

18.5

Typical Hardness RC

24

25

26

27

27

28

Ultimate Tensile Strength Min
(ksi)

110,000

120,000

114,000

110,000

120,000

123,000

Minimum % Elongation
(1" gage length)

6

10

7

7

7

5

Proportional Elastic Limit
(PSI)

45,000

52,000

46,000

45,000

44,000

45,000

Modulus of Elasticity
(x106psi)

40 x 106

45 x 106

47 x 106

45 x 106

50 x 106

53 x 106

Magnetic

No

Slightly

Slightly

No

Slightly

Slightly

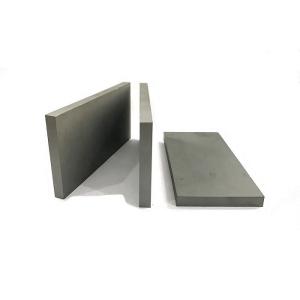

Picture show:

WNiCu WNiFe Heavy Metal Tungsten Alloy Plates 150mm AMST 21014
