550mmx1000mm Pure Tungsten Sheet 19.1g/Cm3 Polished Tungsten Strip

Product Categories
Hubei Fotma Machinery Co., Ltd.
Contact Now

550mmx1000mm Pure Tungsten Sheet 19.1g/Cm3 Polished Tungsten Strip

  • 1
  • 2

Brand Name : FOTMA

Model Number : W-1 Polished

Certification : ISO 9001:2008

Place of Origin : P.R. China

MOQ : 1 pc

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, PayPal

Supply Ability : 2 MT / Month

Delivery Time : 20-25 days

Packaging Details : Plastic boxes, Paper cartons

W Purity : no less than 99.95%

Thickness : 1.0 mm - 100mm

W x L : Max 550mm x 1000mm

Surface : Machine Polished

Density : > 19.1 g / cm3

Tolerance : + / - 0.1mm

Contact Now

W1 99.95% Pure Tungsten Plate Polished Surface with Thickness 1.0mm to 100mm

Pure tungsten Polished Plates are available in our factory.

Pure Tungsten has high melting temperature, high density, low vapor pressure, low thermal expansion combined with good thermal conductivity, sufficient electrical resistance, high modulus of elasticity.

Tungsten Plate Sizes:

Thickness: 1.0mm - 100mm

Width: 50mm - 450mm

Length: 50mm - 1000mm

Pure Tungsten Polished Plates Applications

For sapphire crystal growth furnace, high-purity, high- density, no internal-crack tungsten crucible with
other features of exact measurement and smooth surface has decisive influence on success ratio of
seed growth, quality control of pulling crystal, metamictization pot-committed and service life during
sapphire growth process, and we are willing to be checked by professional units.
If you need more information, please contact us.

Polished Tungsten Plate Size (max mm)

Thickness(mm)

Thickness Tolerance

Width(mm)

Width Tolerance(mm)

Length(mm)

Length Tolerance(mm)

width≤200mm

width≥200-400mm

>0.8-1.0

±0.12

±0.20

50-400

±1

50-1000

+5/-0

>1.0-2.0

±0.15

±0.25

50-400

±2

50-1000

+5/-0

>2.0-3.0

±0.30

±0.30

50-400

±2

50-1000

+5/-0

>3.0-4.0

±0.30

±0.40

50-400

±2

50-1000

+5/-0

>4.0-8.0

±0.40

±0.50

50-400

±2

L

+5/-0

Tungsten Plate Composition:

Density

G/CM3

19.3

Melting point

oC

3410

Thermal conductivity

W/M.K

174 (10--100 oC )

Resistivity

Ω.CM

35 (1000 oC )

Vapor pressure

Pa

low

Hardness

HB

290--350

Tensile strength

MPa

981-1472

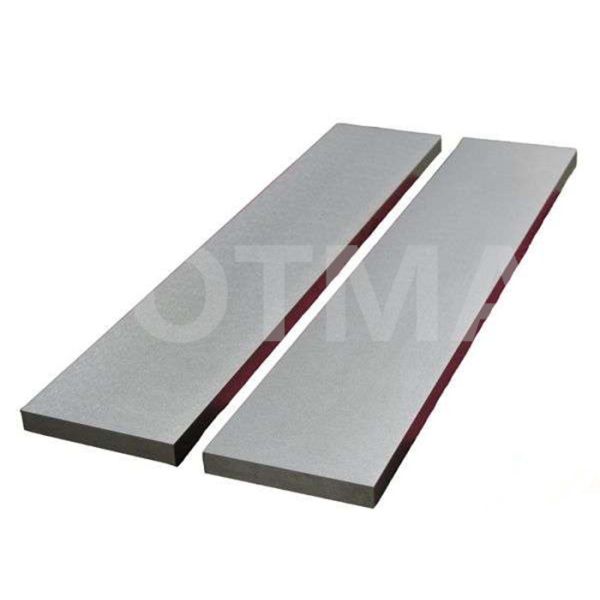

Products Show:

550mmx1000mm Pure Tungsten Sheet 19.1g/Cm3 Polished Tungsten Strip
