CCGX DCGX Tungsten Carbide Indexable Inserts YG6X For Aluminium Machining

Product Categories
Hubei Fotma Machinery Co., Ltd.
Contact Now

CCGX DCGX Tungsten Carbide Indexable Inserts YG6X For Aluminium Machining

  • 1
  • 2

Brand Name : FOTMA

Model Number : CCGX DCGX etc.

Certification : ISO9001:2000

Place of Origin : P.R. China

MOQ : 10pcs

Price : USD 0.5-2.0 / pc

Payment Terms : T/T, Western Union, PayPal, L/C

Supply Ability : 10000pcs/month

Delivery Time : 20-25 days

Packaging Details : 10pcs in a plastic box. Paper carton for delivery.

Material : Tungsten Carbide

Material Grade : YG6, YG6X etc.

Coating : TiN, TAN

Application : Aluminium Machining

OEM : Available

Hardness : ≥90HRA

Contact Now

CCGX DCGX Tungsten Carbide Indexable Inserts for Aluminium Machining YG6 YG6X

Brief Introduction:

The machinability of aluminum differs depending on alloying elements, heat treatments and manufacturing processes (forged, cast, etc.). Tungsten Carbide inserts with a positive basic shape and sharp edges should always be used. Carbide Inserts Ground & Polished specially for Turning Aluminium Alloys are available in our factory. Except the models listed below we can also produce customized inserts for aluminium turning as per your designs.

Advantages:

Tungsten Carbide indexable inserts for aluminium machining:
1. Made from virgin material
2. Efficient machining, good high-temperature stability
3. Free technical support on line

4. Easy to assembly, no crack or chipping

5. Superior wear resistance

6. A comprehensive range of types

Catalogue of Tungsten Carbide Inserts for Aluminium Machining:

TYPE

Dimension(mm)

L

I.C

S

d

r

CCGX

CCGX DCGX Tungsten Carbide Indexable Inserts YG6X For Aluminium Machining

(ISO)

(ANSI)

060202-TH

21.50-TH

6.4

6.35

2.38

2.8

0.2

060204-TH

21.51-TH

6.4

6.35

2.38

2.8

0.4

09T304-TH

32.51-TH

9.7

9.525

3.97

4.4

0.4

09T308-TH

32.52-TH

9.7

9.525

3.97

4.4

0.8

120404-TH

431-TH

12.9

12.7

4.76

5.5

0.4

120408-TH

432-TH

12.9

12.7

4.76

5.5

0.8

TYPE

Dimension(mm)

L

I.C

S

d

r

DCGX

CCGX DCGX Tungsten Carbide Indexable Inserts YG6X For Aluminium Machining

(ISO)

(ANSI)

070202-TH

21.50-TH

7.8

6.35

2.38

2.8

0.2

070204-TH

21.51-TH

7.8

6.35

2.38

2.8

0.4

11T302-TH

32.50-TH

11.6

9.525

3.97

4.4

0.2

11T304-TH

32.51-TH

11.6

9.525

3.97

4.4

0.4

11T308-TH

32.52-TH

11.6

9.525

3.97

4.4

0.8

TYPE

Dimension(mm)

L

I.C

S

d

r

TCGX

CCGX DCGX Tungsten Carbide Indexable Inserts YG6X For Aluminium Machining

(ISO)

(ANSI)

110202-TH

21.50-TH

11

6.35

2.38

2.8

0.2

110204-TH

21.51-TH

11

6.35

2.38

2.8

0.4

16T304-TH

32.51-TH

16.5

9.525

3.97

4.4

0.4

16T308-TH

32.52-TH

16.5

9.525

3.97

4.4

0.8

TYPE

Dimension(mm)

L

I.C

S

d

r

VCGX

CCGX DCGX Tungsten Carbide Indexable Inserts YG6X For Aluminium Machining

(ISO)

(ANSI)

110202-TH

21.50-TH

11

6.35

2.38

2.8

0.2

110204-TH

21.51-TH

11

6.35

2.38

2.8

0.4

110304-TH

221-TH

11

6.35

3.18

2.8

0.4

110308-TH

222-TH

11

6.35

3.18

2.8

0.8

160404-TH

331-TH

16.6

9.525

4.79

4.4

0.4

160408-TH

332-TH

16.6

9.525

4.79

4.4

0.8

160412-TH

333-TH

16.6

9.525

4.79

4.4

1.2

110202-TF

21.50-TF

11

6.35

2.38

2.8

0.2

110204-TF

21.51-TF

11

6.35

2.38

2.8

0.4

110304-TF

221-TF

11

6.35

3.18

2.8

0.4

110308-TF

222-TF

11

6.35

3.18

2.8

0.8

160404-TF

331-TF

16.6

9.525

4.79

4.4

0.4

160408-TF

332-TF

16.6

9.525

4.79

4.4

0.8

160412-TF

333-TF

16.6

9.525

4.79

4.4

1.2

Surface Coating:

Material First layer Second layer Third layer Fourth layer
Ti8 TiN TiC TiCN TiN
TAN TiCN TiC Al2O3 TiN
Al2O3 TiCN TiC Al2O3 /

Suggestion: We would like recommend suitable coated material depending on your requirement.

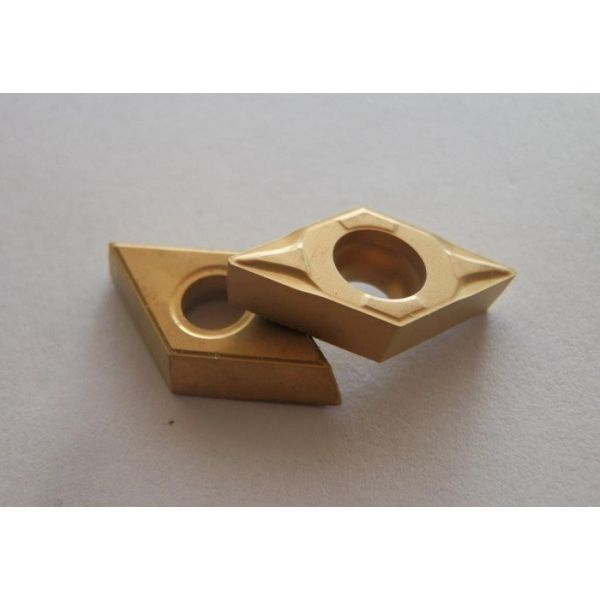

Picture Show:

CCGX DCGX Tungsten Carbide Indexable Inserts YG6X For Aluminium Machining
