Cu/Mo/Cu(CMC) Molybdenum Products Heat Sink Electronic Packaging Materials

Brand Name : FOTMA

Model Number : Cu/Mo/Cu(CMC)

Certification : ISO9001:2008

Place of Origin : P.R. China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, PayPal

Supply Ability : 10000pcs/month

Delivery Time : 20-25 days after deposit

Packaging Details : Paper cartons or plywood boxes

Contact Now

Cu/Mo/Cu(CMC) Heat Sink

Heat Sink Description:

Cu/Mo/Cu(CMC) heat sink, also known as CMC alloy, is a sandwich structured and flat-panel composite material. It uses pure molybdenum as the core material, and is covered with pure copper or dispersion strengthened copper on both sides. Besides, copper molybdenum copper heat sink has adjustable coefficient of thermal expansion, high thermal conductivity, and high thermal stability.

S-CMC is a multi-layered Copper and Molybdenum clad metal, which has an excellent property both low CTE and high thermal conductivity. Its higher thermal conductivity compared to other same kind of materials contributes to highly powered electronic packages.

Heat Sink Product Properties:

Grade Density g/cm3

Coefficient of thermal

Expansion ×10-6 (20℃)

 Thermal conductivity W/(M·K)
CMC111 9.32 8.8 305(XY)/250(Z)
CMC121 9.54 7.8 260(XY)/210(Z)
CMC131 9.66 6.8 244(XY)/190(Z)
CMC141 9.75 6 220(XY)/180(Z)
CMC13/74/13 9.88 5.6 200(XY)/170(Z)

Material

Wt%

Molybdenum Content

g/cm3

Density

 Thermal conductivity at 25℃

Coefficient of thermal

expansion at 25℃
S-CMC 5 9.0 362 14.8
10 9.0 335 11.8
13.3 9.1 320 10.9
20 9.2 291 7.4

Heat Sink Application:

Cu/Mo/Cu(CMC) heat sink has similar applications with tungsten copper heat sinks. It can be used as thermal mounting plates, chip carriers for microwave, flanges and frames for RF, laser diode packages, LED packages, BGA packages and GaAs device mounts etc.

S-CMC heat sink can be used in wireless communication packaging, opto electronics packaging etc.

Cu/Mo/Cu(CMC) Molybdenum Products Heat Sink Electronic Packaging Materials


Product Tags:

Molybdenum Products Heat Sink



Cu Mo Heat Sink



Cu CMC Mo Heat Sink


Cheap Cu/Mo/Cu(CMC) Molybdenum Products Heat Sink Electronic Packaging Materials for sale

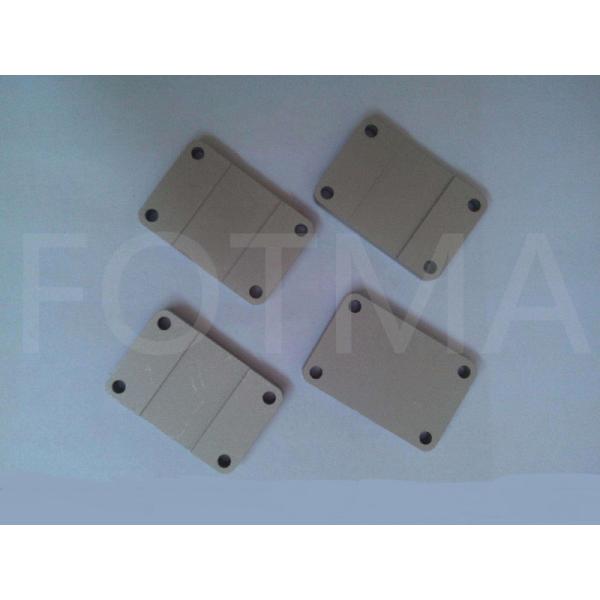

Cu/Mo/Cu(CMC) Molybdenum Products Heat Sink Electronic Packaging Materials Images
