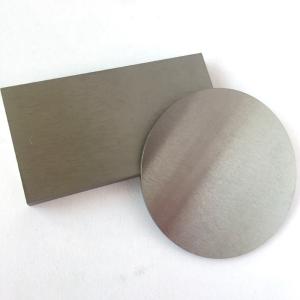

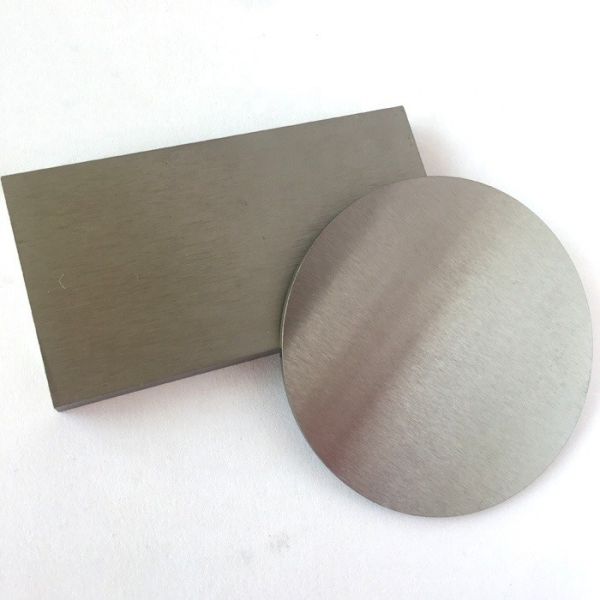

Molybdenum TZM Alloy Plates Molybdenum Alloy Plates Thickness 10mm - 100mm
TZM molybdenum alloy has wxcellent high temperature strength, high recrystallization temperature, high, thermal conductivity, and good resistance to repidly varied temperatures.
TZM offers twice the strength of pure moly at temperatures over 1300°C.
The recrystallization temperature of TZM is approximately 250°C higher than moly and it offers better weldability.
TZM Molybdenum is an alloy of 0.50% Titanium, 0.08% Zirconium and 0.02% Carbon with the balance Molybdenum. TZM Molybdenum is manufactured by either P/M or Arc Cast technologies and is of great utility due to its high strength/high temperature applications, especially above 2000'F.
TZM Alloy Plate Application:
Sapphire Crystal Growth
Quartz Glass
Coating
Rear Earth Metallurgy
Dimensions and Tolerances of TZM Alloy Plates:
|
Thickness (mm)
|
Width (mm)
|
Length (mm)
|
|
0.10~0.15(±0.01)
|
50~300(±2) (Y, M)
|
50~500(±3)
|
|
0.16~0.30(±0.02)
|
50~300(±2) (Y, M)
|
50~500(±3)
|
|
0.31~0.50(±0.03)
|
50~600(±3) (Y, M)
|
50~500(±3)
|
|
0.51~0.70(±0.04)
|
50~600(±3) (Y, M)
|
50~500(±4)
|
|
0.71~1.0(±0.05)
|
50~600(±3) (Y, M)
|
50~500(±4)
|
|
1.01~1.20(±0.06)
|
50~600(±2) (Y, M)
|
50~500(±5)
|
|
1.20~2.0(±0.08)
|
50~500(±5) (R, M)
|
50~500(±5)
|
|
2.01~3.0(±0.08)
|
50~500(±5) (R, M)
|
50~500(±5)
|
|
3.01~4.0(±0.10)
|
50~500(±5) (R, M)
|
50~500(±5)
|
|
≥4.01(±0.12)
|
50~500(±5) (R, M)
|
50~500(±5)
|
|
Notice: 1. CONDITION: Y=Cold Rolled; M=Stress Relieving annealed; R=Hot Rolled
|
Other sizes and tolerances can be made as per customers' request.
High Temperature Tensile Strength and Elongation of TZM Alloy (Ti0.5/Zr0.08)
| Temperature /℃ | Properties |
| Tensile Strength /MPa | Elongation /% |
| RT | 1140 ~1210 | 7.5~13.0 |
| 1000 | 700 ~720 | 5.2 |
| 1200 | 320 ~360 | 9.0 |
| 1300 | 190 ~210 | 11.5 ~13.5 |
| 1400 | 140 ~170 | 11.0 ~16.0 |
Thermal and Electrical Properties of TZM Alloy (Ti0.5/Zr0.1)
| Properties | Coefficient of Thermal Expansion /K-1 (20~100℃) | Thermal Conductivity W/m·K | Max Working Temperature in air ℃ | Electrical Conductivity Ω·m |
| Data | 5.3X10-6 | 126 | 400 | (5.3~5.5)X10-8 |
